Decoding experiment with simulated data

This example uses simulated data to study how functional alignment helps a classifier trained on one subject (the source) generalize to another subject (the target). This example is inspired by this Nilearn simulation.

Two subjects share the same underlying cognitive signal, but this signal is expressed through subject-specific spatial patterns, and is corrupted by independent, spatially smooth noise. This mimics how the same mental process can produce different topographies across individuals in fMRI data, such that a decoder trained on raw voxels does not transfer across subjects.

We compare a classifier trained directly on the source subject to classifiers trained after aligning the source onto the target with PairwiseAlignment, using the Procrustes, Optimal Transport, and Ridge alignment methods.

Simulating two subjects with a shared latent signal

Both subjects observe the same latent variables, but each subject projects them onto its own spatial patterns and adds its own independent, spatially smooth noise. The signal-to-noise ratio (SNR) and the smoothness of the noise are shared across subjects. We start by defining a couple of helper functions to simulate this data.

import numpy as np
from scipy import linalg
from scipy.ndimage import gaussian_filter
from sklearn.utils import check_random_state


def generate_one_subject_data(latent, w, rng, size=12, smooth=1.0, snr=20):
    """Generate data for one subject given latent variables weights."""
    n_samples = latent.shape[0]

    X = latent @ w
    X = gaussian_filter(
        X.reshape(n_samples, size, size), sigma=(0, smooth, smooth)
    ).reshape(n_samples, -1)

    noise = gaussian_filter(
        rng.randn(n_samples, size, size), sigma=(0, smooth, smooth)
    ).reshape(n_samples, -1)

    scale = (
        linalg.norm(X, ord="fro")
        / (10 ** (snr / 20))
        / linalg.norm(noise, ord="fro")
    )
    X += scale * noise
    X -= X.mean(axis=0)

    return X


def simulate_paired_subjects(
    snr=20,
    n_samples_alignment=100,
    n_samples_train=100,
    n_samples_test=100,
    size=12,
    smooth=1.0,
    random_state=None,
):
    """Simulate two subjects with a shared latent signal."""
    rng = check_random_state(random_state)
    n_samples = n_samples_alignment + n_samples_train + n_samples_test

    # Source subject patterns
    w1_source, w2_source = np.zeros((size, size)), np.zeros((size, size))
    w1_source[0, -1] = 1
    w2_source[-1, 2] = -1
    w_source = np.stack([w1_source, w2_source])
    w_source = gaussian_filter(w_source, sigma=smooth)
    w_source = w_source.reshape(2, -1)
    coefs_source = w_source.sum(axis=0).reshape(size, size)

    # Target subject patterns
    w1_target, w2_target = np.zeros((size, size)), np.zeros((size, size))
    w1_target[0, -1] = 0.25
    w1_target[1, -size // 2] = 0.75
    w2_target[-1, size // 4] = -1
    w_target = np.stack([w1_target, w2_target])
    w_target = gaussian_filter(w_target, sigma=smooth)
    w_target = w_target.reshape(2, -1)
    coefs_target = w_target.sum(axis=0).reshape(size, size)

    # Simulate latent variables and generate synthetic signals
    latent = rng.randn(n_samples, 2)
    X_source = generate_one_subject_data(
        latent, w_source, rng, size=size, smooth=smooth, snr=snr
    )
    X_target = generate_one_subject_data(
        latent, w_target, rng, size=size, smooth=smooth, snr=snr
    )

    y = np.sign(latent[:, 0])
    train_end = n_samples_train
    test_end = n_samples_train + n_samples_test

    return (
        X_source[-n_samples_alignment:],
        X_source[:train_end],
        X_source[train_end:test_end],
        coefs_source,
        X_target[-n_samples_alignment:],
        X_target[:train_end],
        X_target[train_end:test_end],
        coefs_target,
        y[:train_end],
        y[train_end:test_end],
    )

Comparing the ground-truth spatial patterns

We display the ground-truth spatial patterns for the source and target subjects. As in real data, the underlying weights differ both in location and strength.

import matplotlib.pyplot as plt

size = 12
(
    X_alignment_source,
    X_train_source,
    X_test_source,
    coefs_source,
    X_alignment_target,
    X_train_target,
    X_test_target,
    coefs_target,
    y_train,
    y_test,
) = simulate_paired_subjects(
    snr=20, n_samples_alignment=100, size=size, random_state=0
)


def plot_patterns(patterns, titles, suptitle):
    fig, axes = plt.subplots(
        1, len(patterns), figsize=(4 * len(patterns), 3.5)
    )
    axes = np.atleast_1d(axes)
    vmax = np.abs(patterns).max()
    for ax, pattern, title in zip(axes, patterns, titles, strict=True):
        im = ax.imshow(pattern, vmin=-vmax, vmax=vmax, cmap="RdBu_r")
        ax.set_title(title)
        ax.set_xticks(())
        ax.set_yticks(())
    fig.colorbar(im, ax=axes, shrink=0.8)
    fig.suptitle(suptitle)

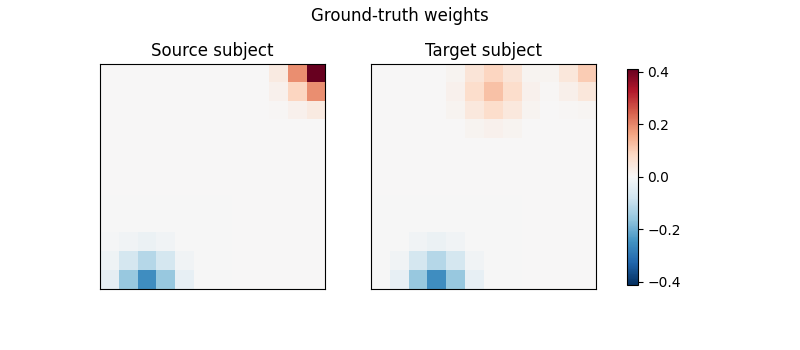

plot_patterns(
    [coefs_source, coefs_target],
    ["Source subject", "Target subject"],
    "Ground-truth weights",
)

Decoding across subjects without alignment

A linear SVM trained on the source subject decodes well on held-out source data, but its spatial weights do not match the target subject’s patterns, so decoding performance drops on the target.

from sklearn import svm
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import StandardScaler

svm_naive = make_pipeline(StandardScaler(), svm.SVC(kernel="linear"))
svm_naive.fit(X_train_source, y_train)
print(
    "Naive SVM score on source:",
    svm_naive.score(X_test_source, y_test),
)
print(
    "Naive SVM score on target:",
    svm_naive.score(X_test_target, y_test),
)

plot_patterns(
    [svm_naive.named_steps["svc"].coef_.reshape(size, size)],
    ["Naive SVM weights"],
    "",
)

Naive SVM score on source: 0.77
Naive SVM score on target: 0.25

Aligning subjects before decoding

PairwiseAlignment learns a transformation from the source to the target subject on a separate set of alignment samples. Applying this transformation to the source subject’s training data before fitting the decoder recovers spatial weights that better match the target subject, for each of the three alignment methods.

from fmralign import PairwiseAlignment

methods = ["procrustes", "ot", "ridge"]
aligned_weights = []

for method in methods:
    algo = PairwiseAlignment(method=method)
    algo.fit(X_alignment_source, X_alignment_target)
    X_train_source_aligned = algo.transform(X_train_source)

    svm_aligned = make_pipeline(StandardScaler(), svm.SVC(kernel="linear"))
    svm_aligned.fit(X_train_source_aligned, y_train)
    aligned_weights.append(
        svm_aligned.named_steps["svc"].coef_.reshape(size, size)
    )

    print(
        f"SVM aligned with {method} target score:",
        svm_aligned.score(X_test_target, y_test),
    )

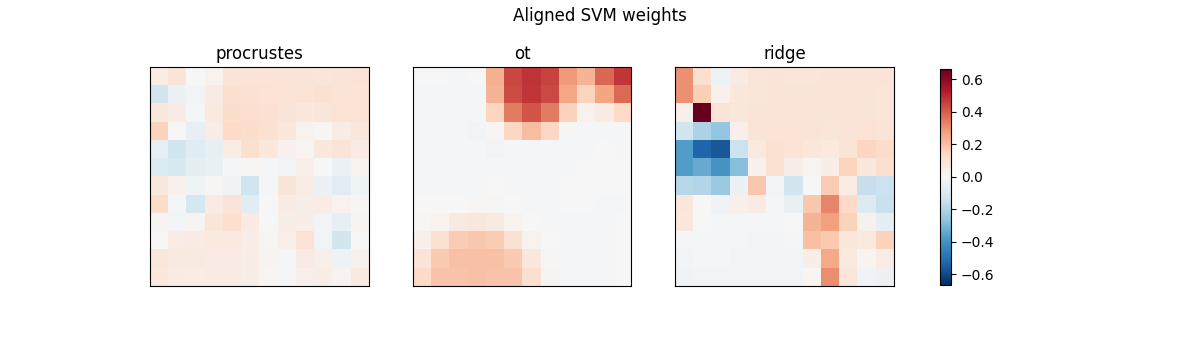

plot_patterns(aligned_weights, methods, "Aligned SVM weights")

SVM aligned with procrustes target score: 0.84
SVM aligned with ot target score: 0.89
SVM aligned with ridge target score: 0.54

Influence of the number of alignment samples and SNR

We repeat the simulation many times to study how decoding accuracy on the target subject depends on the amount of data available for alignment and on the signal-to-noise ratio, for each method.

def score_method(method, snr, n_samples_alignment, random_state):
    (
        X_alignment_source,
        X_train_source,
        _,
        _,
        X_alignment_target,
        _,
        X_test_target,
        _,
        y_train,
        y_test,
    ) = simulate_paired_subjects(
        snr=snr,
        size=12,
        n_samples_alignment=n_samples_alignment,
        random_state=random_state,
    )

    algo = PairwiseAlignment(method=method)
    algo.fit(X_alignment_source, X_alignment_target)
    X_train_source_aligned = algo.transform(X_train_source)

    svm_aligned = make_pipeline(StandardScaler(), svm.SVC(kernel="linear"))
    svm_aligned.fit(X_train_source_aligned, y_train)
    return svm_aligned.score(X_test_target, y_test)


n_samples = [10, 100, 1000, 10000]
snrs = [-10, 0, 10, 20]
n_repeats = 5

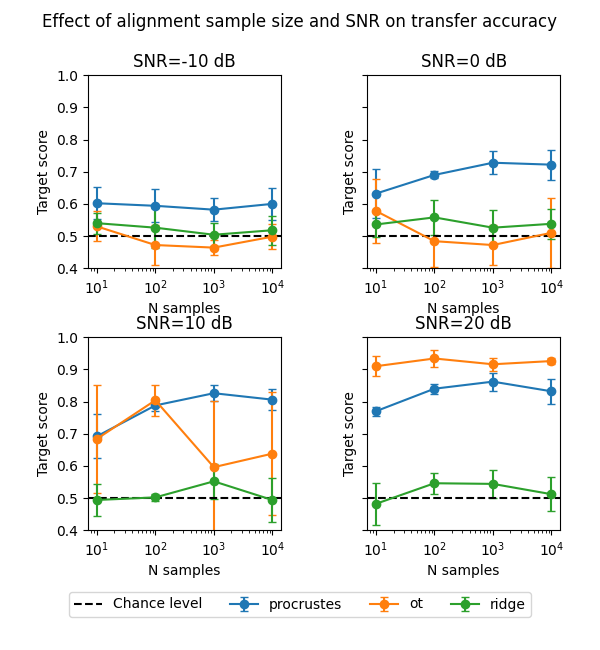

fig, axes = plt.subplots(2, 2, figsize=(6, 6.5), sharey=True)

for ax, snr in zip(axes.ravel(), snrs, strict=True):
    for method in methods:
        scores = np.array(
            [
                [
                    score_method(method, snr, n, random_state)
                    for random_state in range(n_repeats)
                ]
                for n in n_samples
            ]
        )
        ax.errorbar(
            n_samples,
            scores.mean(axis=1),
            yerr=scores.std(axis=1),
            marker="o",
            capsize=3,
            label=method,
        )
    ax.axhline(0.5, color="k", linestyle="--", label="Chance level")
    ax.set_xscale("log")
    ax.set_xlabel("N samples")
    ax.set_ylabel("Target score")
    ax.set_title(f"SNR={snr} dB")
    ax.set_ylim(0.4, 1)
    ax.set_box_aspect(1)

handles, labels = axes[0, 0].get_legend_handles_labels()
fig.legend(
    handles,
    labels,
    loc="upper center",
    bbox_to_anchor=(0.5, 0.1),
    ncol=len(labels),
)
fig.suptitle("Effect of alignment sample size and SNR on transfer accuracy")
fig.tight_layout(rect=(0, 0.1, 1, 0.98))

Conclusion

All three alignment methods improve decoding performance on the target subject compared with the unaligned baseline. This improvement generally increases with the number of samples used for alignment.

In low-SNR settings, such as with BOLD signals, Procrustes performs best. Its highly constrained alignment matrix makes it more robust to noise.

In high-SNR settings, such as with statistical maps, Optimal Transport performs best, thanks to its ability to capture finer spatial patterns.

Ridge regression requires estimating a matrix. Consequently, it typically requires tens of thousands of alignment samples to be reliably estimated, as it has the mildest regularization of the three methods.

In practice, the best alignment method depends on both the type of data and the number of samples available for alignment.
